Electronic Detection Systems
Luminochem’s electronic detection systems are developed to make our customers work easier when it comes to detect and authenticate products with security features designed with our materials.
High security materials used in banknotes, passports, IDs, tax stamps, legal documents or labels are crucial to prevent them from counterfeiting. This makes accurate detection and safe authentication of these products a vital role. That is what we offer: special detection and authentication equipment developed and optimized for Luminochem’s high security materials
Our goal is to provide reliable, yet unique solutions in the field of authentication. Our electronic detection systems can detect and distinguish our huge variety of security materials whether it’s a UV-fluorescent pigment, UV fluorescent dye, Anti-Stokes pigment, NIR absorbing pigments and dyes, NIR fluorescent materials or the combinations of the above.
-

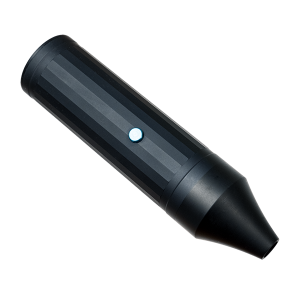

LUPEN Blue
Handheld device for checking IR active security features.- Detects IR active materials
- Excitation Wavelength 440 nm
- Detection wavelength Optimized for specific Luminochem product
- Power supply Built-in battery
- Weight 96 g
- Accessories Micro USB charging cable and charger included
-
LUPEN UV-A
Handheld device for checking specific UV fluorescent features.- Detects UV-A materials
- Excitation Wavelength 365 nm
- Detection wavelength Optimized for specific Luminochem product
- Power supply Built-in battery
- Weight 96 g
- Accessories Micro USB charging cable and charger included
-
LUPEN Duo
Handheld device for checking UV and IR active security features simultaneously.- Detects UV-A and IR active material combinations.
- Exciation Wavelength 365 nm & 440 nm
- Detection wavelength Optimized for specific Luminochem product
- Power supply Built-in battery
- Weight 96 g
- Accessories Micro USB charging cable and charger included
-
LUPEN UV-C
Handheld device for checking UV fluorescent security features.- Detects UV-C materials
- Excitation wavelength 280-290 nm
- Detection wavelength Optimized for specific Luminochem product
- Power supply Built-in battery
- Weight 96 g
- Accessories Micro USB charging cable and charger included
-
Data Matrix Reader
Handheld camera for checking and decoding NIR absorbing security features.- Detects NIR absorbing materials
- NIR LED wavelength 850-950 nm
- Detection wavelength Optimized for specific Luminochem product
- Power supply Powered by the connected smartphone
- Accessories USB-C data cable
-

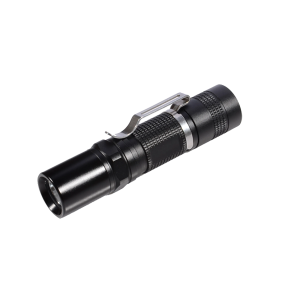

UV flashlight 365 nm
Handheld flashlight for illuminating UV fluorescent features.- Detects UV-A materials
- Wavelength 365 nm
- Power 3W
- Power supply 1 AA battery (not included)
- Weight 47,8 g
- Accessories Lanyard, O-ring, silicone cap and protective pouch
- Waterproof IPX-8
-
Anti-Stokes (up-converting) detector
Handheld device for authenticating up-converting security features.- Detects Up-converting materials
- Power supply 2*AAA batteries (not included)
- Weight 25 g
-

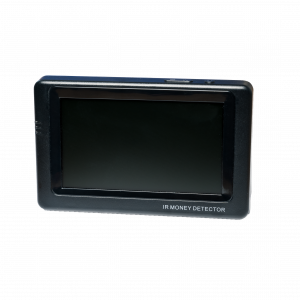

IR camera
Handheld IR camera with LCD screen for detecting NIR absorbing security materials.- Detects NIR absorbing pigments and dyes
- Screen size 4.3 inch
- Power supply Built-in battery
- Accessories USB charger & charging cable
